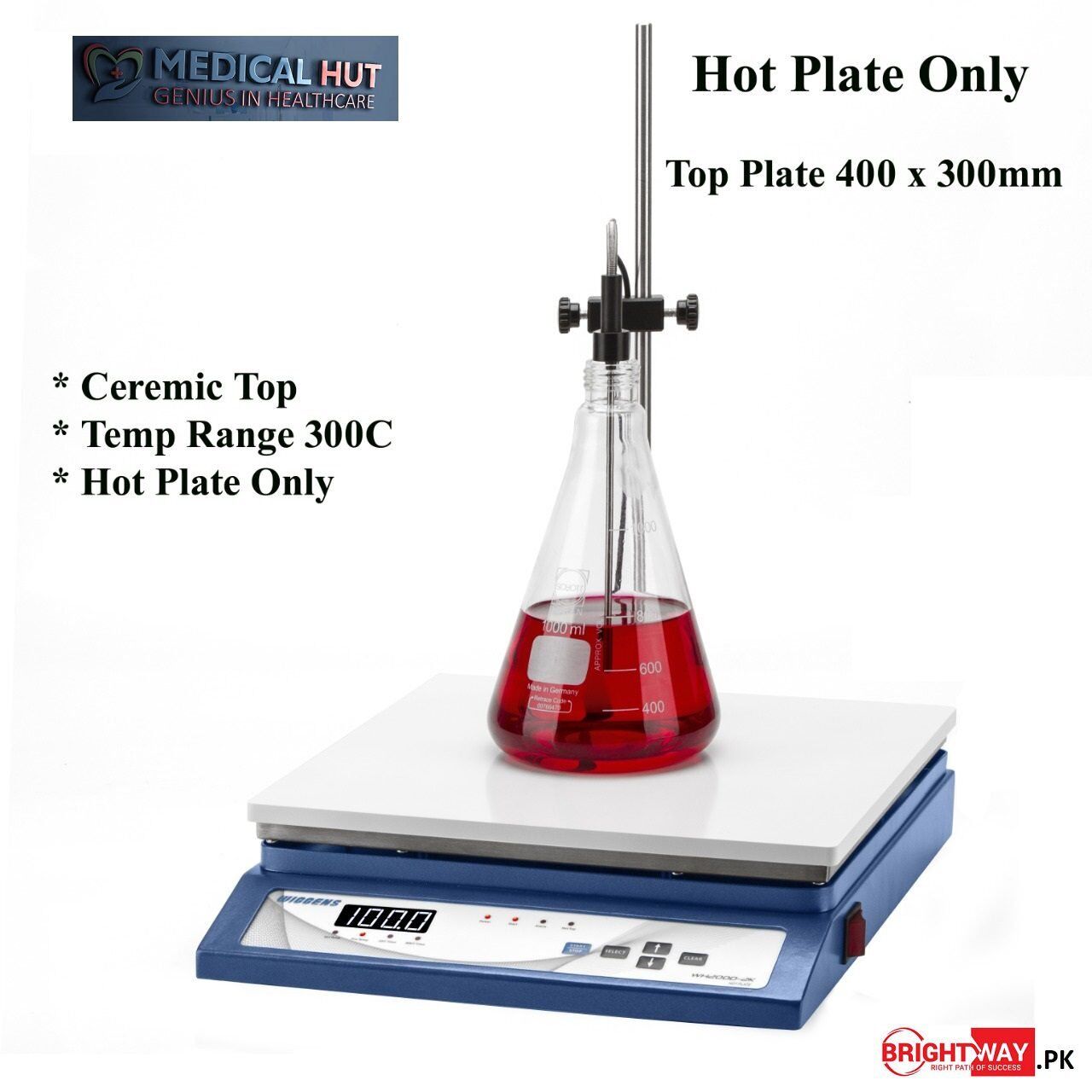

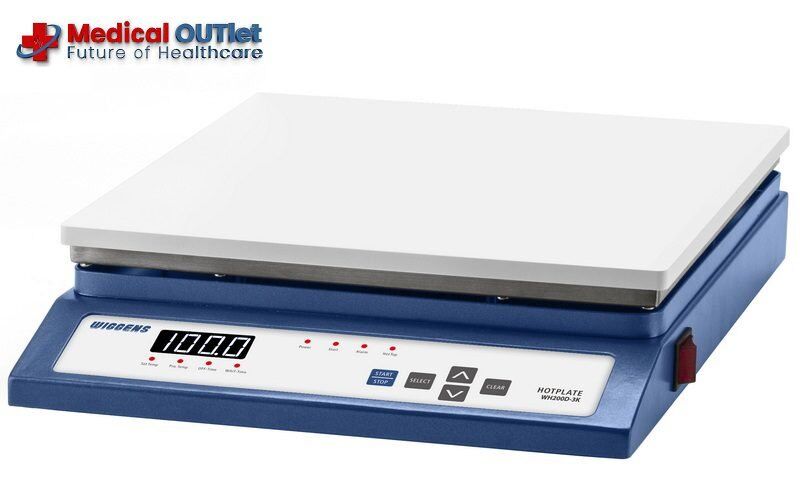

WH200D-3K Digital Hot Plate is developed and produced according to high international quality standards. The WH200D-3K Digital Hot Plate has a Temperature range of 50~300℃. A PT100 Temperature Sensor can be added as an accessory.
Features
- PID temperature control technology for accurate and reliable results
- Suitable for complicated temperature control requirements
- Bright LED screen can display both set value and actual temperature
- Convenient temperature setting via on-touch control
- Timer function for automatic heating up to 100 hours
- Alarm signal output which can be applied to stop the operation of the hot plate and other connected devices
- External Pt100 temperature sensor connection for direct and precise control of the actual temperature
Wiggens WH200D-3K Digital Hot Plate Specifications :
| Model | WH200D-3K |
| Display Mode | LED |
| Temperature Stability (ºC) | ±2 |
| Top Plate Material | Aluminum coated with ceramic |
| Set Temperature Range ( top plate) (℃ ) | 50~300 |
| Set Temperature Range (with Pt100 sensor) (℃ ) | 40~300 |
| Power (W) | 1500 |
| Heating Plate Dimensions (W x L in mm) | 400 x 300 |
| Dimensions (W x L in mm) | 470 x 410 x 70 |
| Order No. | 400112 |
