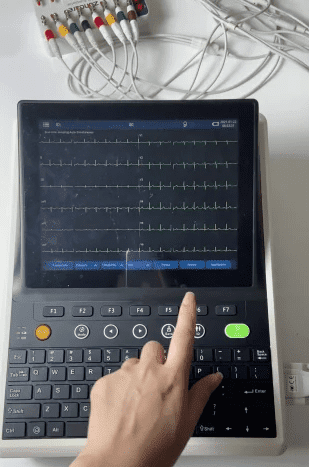

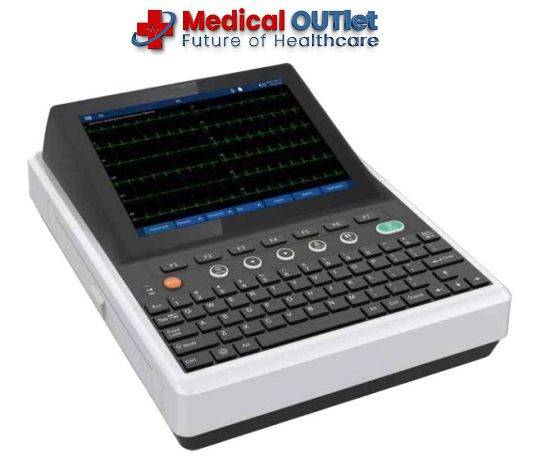

Classic 12 Channel EKG Machine
U90 supports Wi-Fi and WLAN to connect internet. It is a 12-channel resting ECG, which offers easy-to-use interface, a bright color display and touch operation. It is an ideal option for clinical use.
Features |
| ● 12-lead synchronous acquisition and display ● 9.7-inch tilted touch screen with grid background ● High-performance chip module makes ECG signal collection more accurate ● Sampling rate: 32000Hz ● A/D shift: 24 bits ● 0.01-350Hz ultra-wide frequency response could acquire signals of patients from pediatric to elder ● With waveform freezing and waveform review functions, clinicians can choose any waveform for analysis and printing ● With report preview function, clinicians can ensure signal quality ● Support reanalysis based on modified patient information ● Support USB/ RJ45/ SD card ports for peripherals and export of data ● Support output of multiple formats
|
| Network and Connectivity |
 U90 could connect to network by WiFi and wired way. The report could be transmitted in PNG/ DCM/ XML/ HL7/ PDF/JPG/ GDT/ ZQECG formats to hospital information system through international standard transmission protocol such as DICOM, HTTP, FTP, SAMBA directly. |
| What is 12-lead ECG? The 12-lead ECG refers to the 6 leads of the limbs and the 6 leads of the chest. The commonly used clinical mapping ECG and bedside ECG both include 12 leads. The 6 leads of the limbs include standard one, standard two, standard three, AVR, AVL and AVF leads. The 6 leads on the chest include V1, V2, V3, V4, V5, and V6. |
