Product Description
Yonker Multipara Patient Monitor, YK-8000B (ECG, SPO2, NIBP, 2-Temperature, HR, Resp). Yonker YK-8000B is a patient monitor. Medieval has not found evidence proving the accuracy of its blood pressure measurement technology. Blood pressure measurements are taken from the upper arm. It is intended for bedside patient monitoring.
YK-8000B Cardiac Monitor perform standard measurements and has a number of other features, including Up to 400 groups of NIBP list, 6000 seconds ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage, rechargeable batteries with 5 hours working capabilities and more.
TECHNICAL SPECIFICATIONS |
|||
|
ECG
|
NIBP
|
||
|
Input
|
3/5 wire ECG cable
|
Test method
|
Oscillometer
|
|
Lead section
|
I II III aVR, aVL, aVF, V
|
Philosophy
|
Adult, Pediatric and Neonate
|
|
Gain selection
|
*0.25, *0.5, *1, *2，Auto
|
Measurement type
|
Systolic Diastolic Mean
|
|
Sweep speed
|
6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
|
Measurement parameter
|
Automatic, Continuous measurement
|
|
Heart rate range
|
15-30bpm
|
Measurement method Manual |
mmHg or ±2%
|
|
Calibration
|
±1mv
|
||
|
Accuracy
|
±1bpm or ±1% (select the bigger data)
|
||
|
SPO2
|
2-Temperature (Rectal & Surface)
|
||
|
Display Type
|
Waveform, Data
|
Number of channels
|
2 channels
|
|
Measurement range
|
0-100%
|
Measurement range
|
0-50℃
|
|
Accuracy
|
±2% (between 70%-100%)
|
Accuracy
|
±0.1℃
|
|
Pulse rate range
|
20-300bpm
|
Display
|
T1, T2, ☒T
|
|
Accuracy
|
±1bpm or ±2% (select the bigger data)
|
Unit
|
ºC/ºF selection
|
|
Resolution
|
1bpm
|
Refresh cycle
|
1s-2s
|
|
Respiration (Impedance & Nasal Tube)
|
|||
|
Measurement type
|
0-150rpm
|
||
|
Accuracy
|
±1bm or ±5%, select the bigger data
|
||
|
Resolution
|
1rpm
|
||

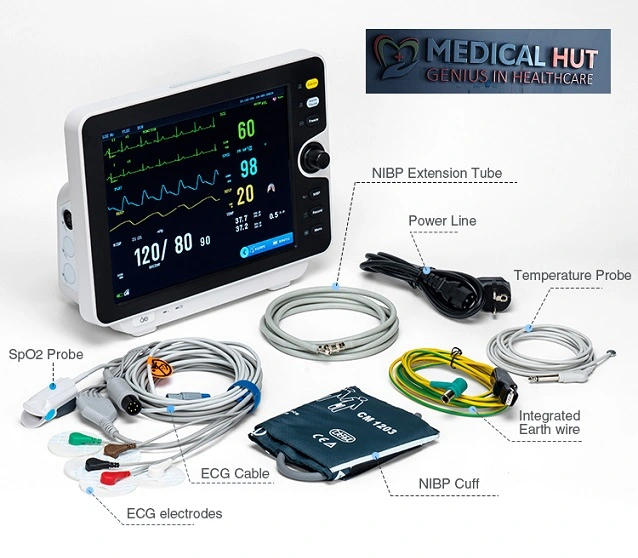

Standard accessories |
|||
|
NIBP cuff & tube
|
ECG cable & electrodes
|
SpO2 sensor
|
TEMP probe
|
|
Lithium-ion battery
|
Power cable
|
Operator’s manual
|
|
Optional accessories |
|||
|
IBP
|
CO2
|
Nellcor SpO2
|
Printer
|
