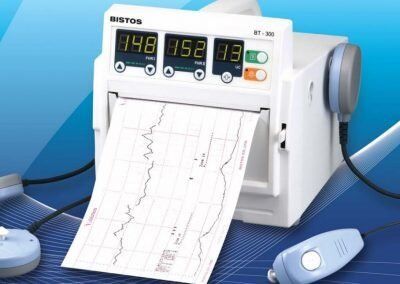

BT-300 indicates FHR as numeral by irradiating ultrasound at the abdomen, abstracting doppler frequency of heart beat cycle from the signals reflected from fetal heart, outputting FHR change as a sound, and analyzing these signals. Besides, you can measure UC by using pressure sensor, indicate, and print the data of FHR and UC.
It is a Antepartum Fetal Monitor measuring FHR and UC. It enables a woman in childbed to indicate fetal movement point by pushing event marker button by herself when she feels that.
Antepartum Fetal Monitor BT-300 Features
- Compact and light
- Easy-to-use
- High sensitivity, probe-frequency 1 MHz
- External uterine-contraction
- Fetal Movement
- Ergonomic designed event marker
FHR
- Ultrasound Frequency: 1 MHz
- Intensity: ≤10 mW/cm
- FHR Range: 50 -240 bpm
- FHR Accuracy: ±2 % of Range
FM
- Fetal Movement
UC
- External Type
- Reference (zero) Control
- Measurement Range: 0-99 units
Printer
- Thermal Array Type
- Print Speed: 1, 2, 3 cm/min
- Paper Feeding Function
Display
- 7-Segment LED
- 3 Channels (FHR I, FHR II, UC)
Sound
- Doppler Sound
- Alarm Sound
- Information Sound
Set-up
- Alarm Upper/ Lower Limit Value
- Print Speed, Print Contrast
Function
- Mark Function
- FHR II Offset Function
- Auto Print Function
Power
- Input: AC 100-240 V (50/60 Hz)
- Output: DC 16 V, 2.8 A
- Consumption: 80 VA
Dimension
- 191(H) x 187(L) x 201(D) mm
Made In
- South Korea
Materials Included
- BT-300 Unit
- 1 Toco Probe
- 2 Ultrasound Probes
- 1 Event Marker
- 1 Z-folded Type Paper
- 3 Probe Belts
- 1 Power Cord
- 1 Power Adaptor
- 1 Ultrasound Gel
- PDF User Manual
