Professional muscle Stimulator DL2is the most durable and most efficient device in Pakistan.
The following features of the pulse Stimulator.
1. Plain Faradic Current.
2. Surged Faradic current
3. Pulsed Galvanic current
DESCRIPTION OF CONTROLS
ON/OFF SWITCH : This is provided at the backside of the unit
GAL/FAR SELECTOR : Used to select either Galvanic or Faradic SWITCH mode of current required.
SURGE CONTROL : To adjust surge rate in interrupted Faradic mode.
INTENSITY CONTROL : To adjust level of intensity, in both Galvanic & Faradic modes.
OPERATING PROCEDURE
- Ensure all controls in the minimum position and the unit is in OFF position.
- Fix the electrodes to the patient.
- Select either Galvanic or Faradic modes are required.
- Galvanic Mode : Select plain or interrupted Galvanic mode as desired. : In the interrupted mode select duration and pulse rate as desired.
- Faradic Mode : Select either plain or interrupted mode : Select desired surge level in interrupted mode.
- Switch on the Machine.
- Adjust intensity control slowly till the desired level of stimulation is achieved.
PRECAUTIONS TO BE OBSERVED
- Ensure proper EARTHING CONNECTION.
- Take proper care to wet the electrodes to ensure good body contact.
- Switching “ON” the machine when the intensity control is not at ZERO may cause a severe shock to the patient and should be avoided.
- Ensure that the two electrodes do not touch each other when the unit is switched on.
- There are no user serviceable parts in the machine. Refer any complaints to the manufacturer/their authorized distributors..
STANDARD ACCESSORIES
- Muscle stimulator cable 2 pc.
- Muscle stimulator pad 2 pc
- Velcro Belt 2 Pc.
- Unit Cover 1 Pc.

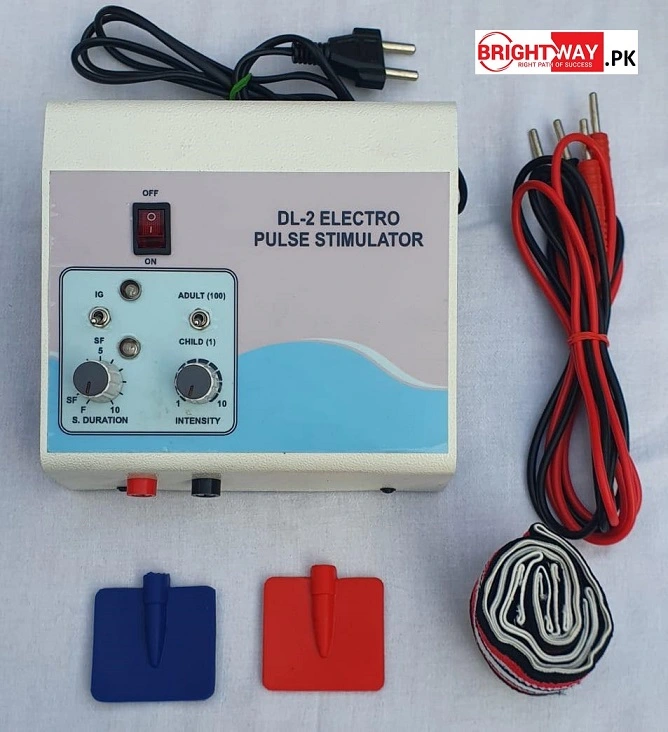

FRONT PANEL
- Search duration control
- Search faradic & Interrupted Galvanic selector switch.
- Intensity control
- Muscle stimulator Adult & child selector switch.
- Intensity control
