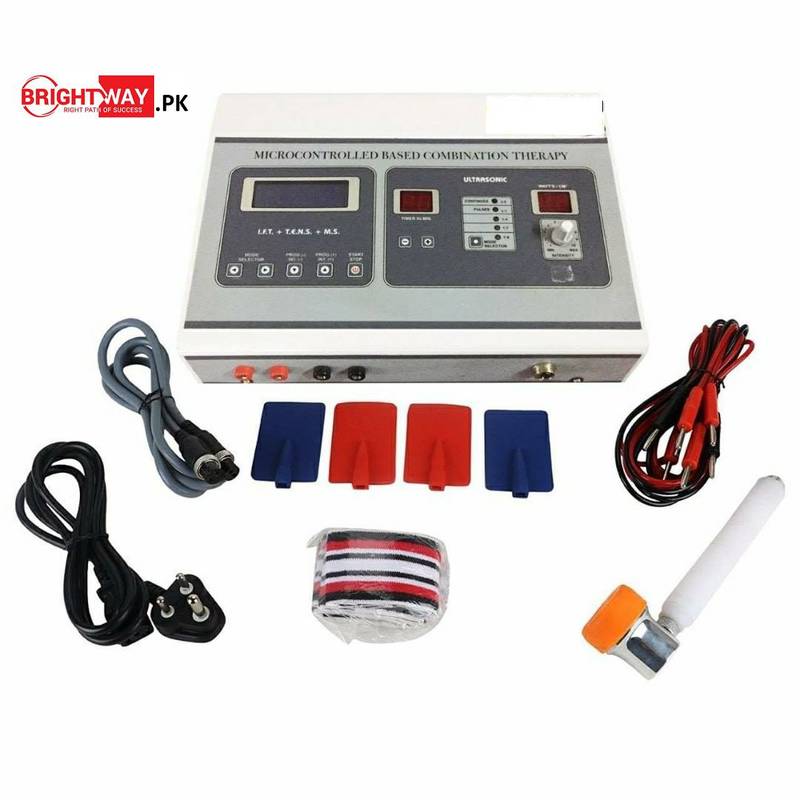

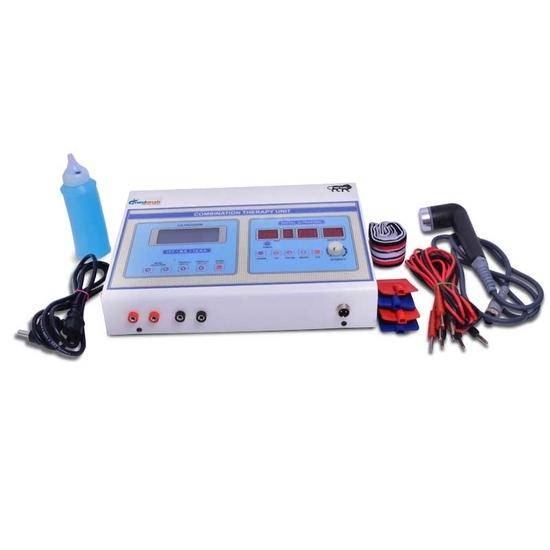

Physio Ultrasound therapy Machine Combo – Ultrasound & Electro Combo Machine – IFT+US+MS+TENS COMBO

Though interference currents are classed as low frequency on the basis of their Therapeutic effective components, they have specic characteristic properties, which distinguish them from any other therapeutic low frequency current. These currents are used for the treatment of various muscular diseases and pains by passing them inside the body by means of electrodes. High frequency current waves acting on the tissues give relief from pain.

 115,000

Compare

Micro Controller Based IFT+US+MS+TENS COMBO

Though interference currents are classed as low frequency on the basis of their Therapeutic effective components, they have specie characteristic properties, which distinguish them from any other therapeutic low frequency current. These currents are used for the treatment of various muscular diseases and pains by passing them inside the body by means of electrodes. High frequency current waves acting on the tissues give relief from pain.

In General Important frequencies in electro therapy are between 0 and 250 Hz. In interference therapy these frequencies are generated in the tissue by the superposition of two currents. Due to high frequency of the current intensities are used. Thus areas deep in the body can be stimulated.

Working Principles

In the Interferential Therapy, we make use of two medium frequency alternatively currents. These medium frequency currents are not identical and may differ in frequency up to 150 Hz. Two oscillator of medium frequency are generated and are cross wisely applied to the body by means of four electrode pads. {(CH1) & (CH2)} Each channel with on pair of pads i.e. two No. of pads. One oscillator has a fixed frequency of 4000 Hz the other one can be ranged in the freq. between 3850 Hz.
Both oscillator interfere i.e. intersect inside the body resulting in a modulated signal as a carrier and low frequency part (The difference in frequency) for the actual therapy. In simple words, we can define the interferential therapy as when two medium frequency currents, i.e. CH1 & CH2 intersects with each other, leading interference currents to be generated at the place.

For example, let us take two medium frequency current, Current in CH1=4000 Hz. & in CH2=3850 Hz

These two currents are applied to any part of the body (or a tissue) at the points where the current cross each other. The new Beat frequency current set up is amplified which is been modulated i.e. AMF Amplified modulated medium frequency) and the frequencies of the new current is called Interferential current which is 150 Hz) by varying the constant frequency of the first it is possible to producer a range of beat frequencies deep in the patients tissue. Thus it is possible to create any desired frequency rate in the carrier currents.

WHAT IS TENS?

TENS is short for Transcutaneous Electrical Nerve Stimulation. The T.E.N.S generates electrical impulses that are sent through electrodes placed over nerve centers. The various pulses employed by TENS can block pain signals normally sent to the brain through nerve bers, thereby interrupting the brain’s awareness of pain. The TENS may activate the release of endorphins. These are chemicals in the control system by the body to suppress pain naturally. It is no longer necessary for many people to endure chronic or constant pain. The use of TENS usually improves pain management signicantly. TENS is safe, non-invasive, drug free, non addictive and has no side effects. The TENS can reduce the need for pain narcotics and drugs. Federal law restricts these devices to sale by or on the order of a physician. TENS is a FDA regulated non-narcotic pain relief device.

TENS

  • Frequency : 2, 10, 50, 100, 150 Hz
  • Therapy Modes: Burst, Cont. Burst -2, PWM, Sweep, Combi
  • Wave Shape: Bi-Phasic
HOW DOES TENS WORK
TENS work by two different methods. High frequency TENS, is based on the theory that continuous mild electrical activity blocks the pain signal travelling to the brain. If the pain signal does not get through to the brain, the pain is not “felt”. The second way TENS work is by stimulating the body’s own natural pain control mechanism. Low frequency or short bursts of electrical activity causes the body to release its own pain relieving substance, called endorphins.

Ultrasonic

  • Input Voltage: 220V AC/50Hz
  • Ultrasound Frequency – 1MHz
  • Ultrasound Power Density – 3.5 Watt / cm2;
  • Treatment Time: 0-99 minutes
  • Mode of Operations – Continuous & Pulsed
  • Pulse Duration – 1:1, 1:4, 1:7, 1:9

 Features

1. Plain Faradic Current.
2. Surged Faradic current
3. Pulsed Galvanic current

DESCRIPTION OF CONTROLS

1. ON/OFF SWITCH : This is provided at the backside of the unit
2. GAL/FAR SELECTOR : Used to select either Galvanic or Faradic
SWITCH mode of current required.
4. SURGE CONTROL : To adjust surge rate in interrupted Faradic
mode.
5. INTENSITY CONTROL : To adjust level of intensity, in both Galvanic & Faradic modes.

OPERATING PROCEDURE

Ensure all controls in the minimum position and the unit is in OFF position.
Fix the electrodes to the patient.
Select either Galvanic or Faradic modes are required.
Galvanic Mode : Select plain or interrupted Galvanic mode as desired.
: In the interrupted mode select duration and pulse rate as desired.
Faradic Mode : Select either plain or interrupted mode
: Select desired surge level in interrupted mode.
Switch on the Machine.
Adjust intensity control slowly till the desired level of stimulation is achieved.
PRECAUTIONS TO BE OBSERVED
Ensure proper EARTHING CONNECTION.
Take proper care to wet the electrodes to ensure good body contact.
Switching “ON” the machine when the intensity control is not at ZERO may cause a severe shock to the patient and should be avoided.
Ensure that the two electrodes do not touch each other when the unit is switched on.
There are no user serviceable parts in the machine. Refer any complaints to the manufacturer/their authorized distributors.

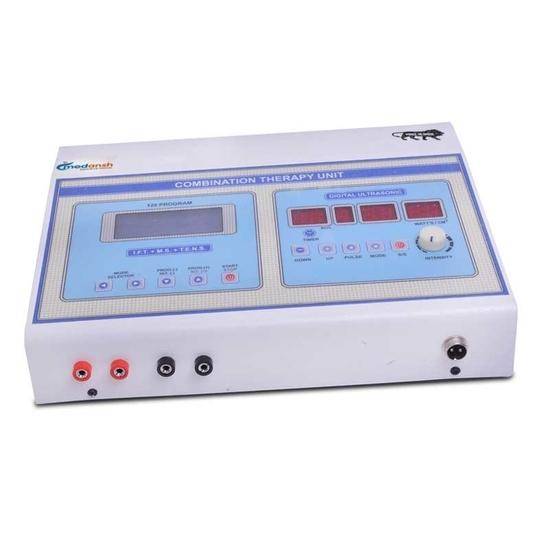

FRONT PANEL

1. Knob For Increasing/decreasing pulse duration.
2. Knob For Increasing/decreasing Intensity
3. Display For Power Output
4. Switch For Selecting Pulse / Cont.
5. Output for Handle
