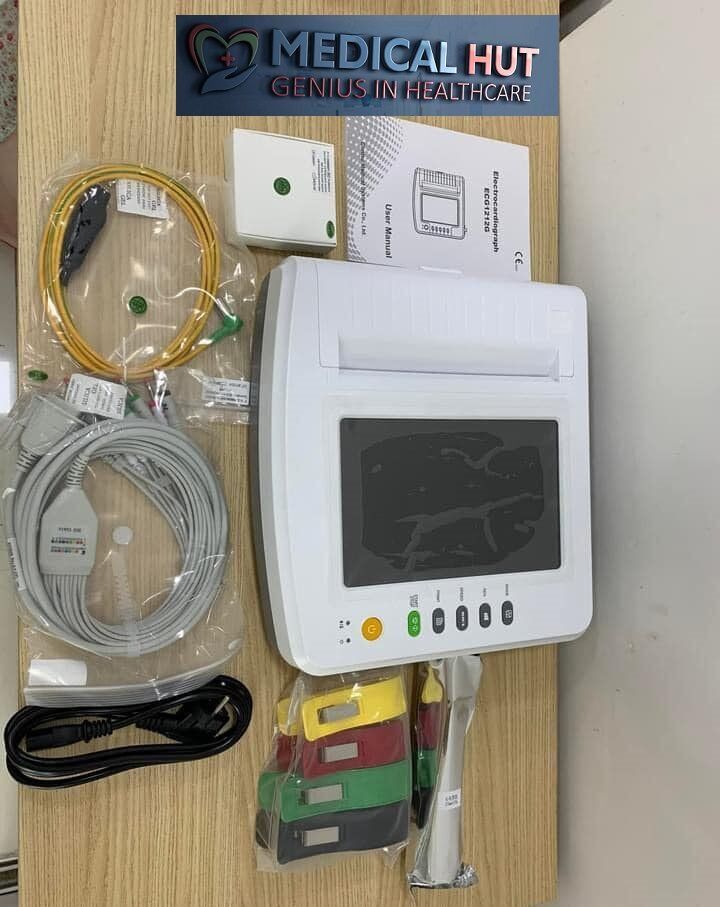

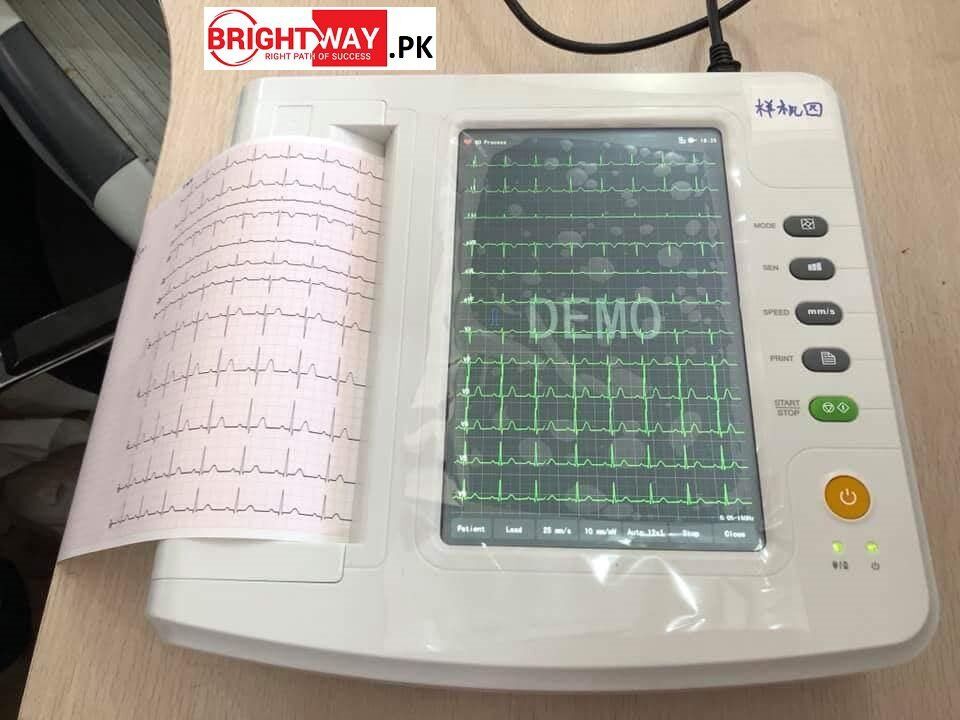

12 Channel electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system.
- 10.1” high-resolution color LCD, operate by full-touch screen and function buttons, convenient to use.
- Sync collection for 12-lead ECG, support 12-lead and Cabrera-lead waveform display.
- Built-in thermal printer, support multiple printing modes and formats, such as, auto M × N, M × N + 1, M × N + 2, rhythm M line and manual, etc.
- Built-in memory stores 4000 cases (data saving time: 10 s) at least, convenient for case review and statistic.
- Historical cases can be reviewed, inquired, modified, transmitted, printed, lead corrected, the cases can also be exported to other electronic file formats (dat, pdf, xml, bmp, jpeg, etc.)

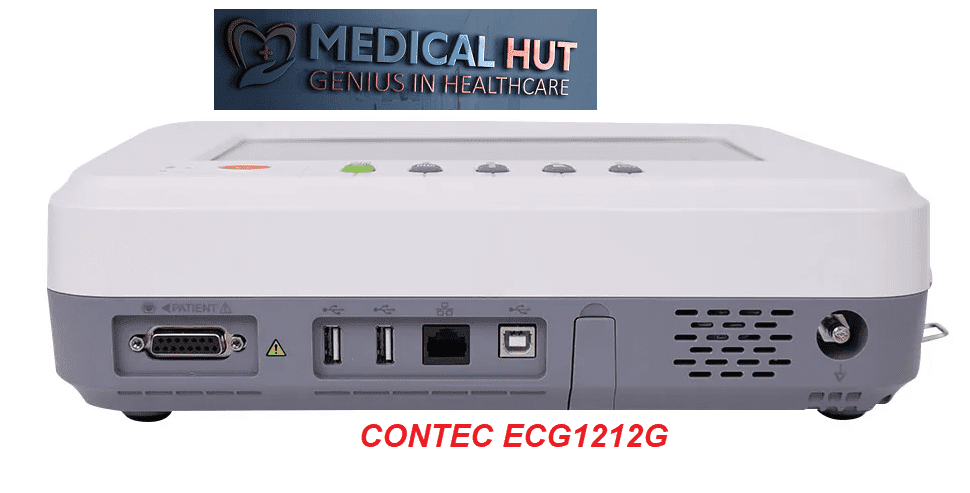

- Support external USB standard keyboard, mouse, scanner and printer.
- Brand Name: CONTEC
- Model Number: ECG1212G
- Power Source: Electric
- Warranty: 1 Year, 12-month for main unit and 6-month for accessories
- After-sale Service: Repair and Replacement
- Material: Plastic
- Shelf Life: 1years
- Quality Certification: ce
- Instrument classification: Class II
- Safety standard: None
- Type: Pathological Analysis Equipments
- Dimension: 340mm(L) * 320mm(W) * 85mm(H)
- Weigh: 3.2Kg
- Power supply: AC/DC
- AC: 100V~240V(50/60Hz)
- DC: 14.8V/3500mAh rechargeable lithium battery
- Paper size: 210mm(W)*20m(L)
- Certificate: CE ISO FDA
- Display: 3/6/12-lead ECG, print mode, sensitivity, paper speed
